🔧 How to Replace Your Vehicles Mass Air Flow Sensor Meter (MAF): A DIY Guide

First of all, what is a MAF?

The Mass Air Flow (MAF) Meter is a sensor on fuel-injected engines that measures the amount of air entering the engine. This information is crucial for the engine control unit (ECU) to determine the correct amount of fuel to inject for optimal combustion.

In more detail:

• Location: It’s usually located between the air filter box and the intake manifold.
• Function: It ensures the air-to-fuel ratio is just right — not too rich (too much fuel) or too lean (too much air).
• Importance: A faulty MAF sensor can cause:
  • Rough idling
  • Poor acceleration
  • Decreased fuel economy
  • Check Engine Light (CEL)

Common types:

Hot wire (most common) – uses a heated wire that cools as air flows past it; the amount of current needed to keep it hot tells the ECU how much air is flowing.

Vane meter – older style, uses a flap that moves with airflow.

Hot film – similar to hot wire, but uses a film sensor.

Symptoms of a Failing MAF

When a MAF starts to fail, you might notice poor fuel economy, rough idling, or even your check engine light turning on. Replacing a MAF sensor is one of those DIY repairs that’s surprisingly simple, even if you’re not a seasoned gearhead.

🧰 What You’ll Need

• A new MAF sensor (obtain the existing MAF part number and order the same part number, sometimes, part numbers are updated to a new revised (superseded) version, so if in doubt, please email us with your reg number or VIN.
• Screwdriver (usually Phillips or Torx)
• Depending on the MAF/intake design, you may need a hose clamp plier tool
• Socket set (sometimes needed for airbox removal)
• A new replacement air filter.
• Gloves (optional, but keeps hands clean)
• Mass air flow cleaner spray (optional but good for cleaning the air intake while you’re at it)

🔍 Step-by-Step Guide

1. Locate the MAF Sensor

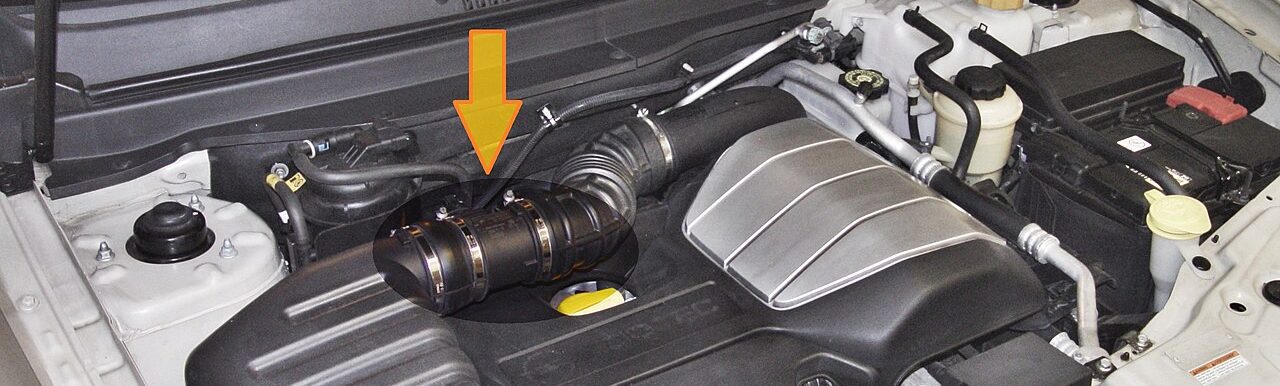

Pop the hood and look for the air intake system. The MAF sensor is usually found between the air filter box and the throttle body. It looks like a small plastic module connected to the intake tubing with a wire harness plugged into it.

2. Disconnect the Negative Terminal on Your Battery and Press the Brake Pedal for 15 Seconds

This step is often severely underestimated and missed. It’s crucial as it drains the stored power in the ECU. By performing this process, it resets the ECU and clears the memory (safely), allowing it to relearn the new MAF sensor values and correctly calibrate the fuel system. If you miss this step, the ECU may try and run the new MAF with the faulty MAF’s calibration, and it will run poorly!

3. Unplug the Electrical Connector

Gently press down on the tab of the MAF sensor’s electrical connector and pull it out. Don’t yank it—those connectors can be fragile. Some connectors have a different design, they may need to be raised instead of pushed down.

4. Remove the Old Sensor

Use a screwdriver or socket wrench to remove the screws or bolts holding the sensor in place. Once it’s free, carefully lift it out.

Pro Tip: Be gentle—some sensors are mounted with plastic tabs that can snap easily.

5. Install the New MAF Sensor

Slide the new sensor into place and secure it with the screws or bolts. Make sure it’s seated properly—air leaks can cause performance issues.

6. Reconnect the Electrical Plug

Plug the connector back into the new sensor until it clicks into place.

7. Replace the Air Filter

A dirty or clogged air filter can negatively impact the Mass Airflow (MAF) sensor’s performance and lead to various engine issues. The MAF sensor relies on clean, unobstructed airflow to accurately measure the air entering the engine, which the engine computer uses to regulate fuel delivery.

• Restricted Airflow: A dirty air filter restricts the amount of air flowing into the engine.
• MAF Sensor Damage: The MAF sensor, positioned downstream of the air filter, can become contaminated with dust and debris that are not filtered out by a dirty filter.
• Incorrect Airflow Measurement: The MAF sensor may then provide inaccurate readings to the engine computer, leading to poor fuel mixture and other issues
• Warranty: It is void if a MAF is found to be contaminated.

8. Reconnect the Battery and Start the Engine

Turn the car on and let it idle for a few minutes. You may notice a smoother idle, improved throttle response, and possibly the check engine light turning off if the issue was related to the old sensor.

🛠️ Extra Tips

• Don’t touch the sensor wire on the new MAF. It’s super sensitive and can be damaged easily.
• If your check engine light stays on, you might need to clear the code with an OBD-II scanner, or Step 2 has been missed.
• Make sure to replace the air filter when replacing the MAF.



Final Thoughts

Replacing your MAF sensor is one of the easiest ways to fix driveability issues. If you’re experiencing symptoms like stalling, hesitation, or poor mileage, this quick repair might be exactly what your car needs.
